| Product name： |
A60 automatic 3D laser scanner |
| Model： |
A60 |
| Brand： |
|
| Quotation： |
|
|
| Product introduction |
1) It can be hung upside down on the inner top of the silo to measure the volume of materials in the silo and scan 20000 points per second;
2) The volume accuracy is high, and the volume error is controlled within 0.5%;
3) The scanner can be remotely controlled by cables to scan, and the graphics data in the warehouse can be obtained in real time. The instrument can be rotated by a laptop or desktop computer and the scanning data can be recorded;
4) The Chinese software interface is simple to operate. Only one key is needed to scan the stock pile on site;
5) It can automatically reduce noise and filter, and automatically generate the coal inventory report in the format required by users;
6) The instrument is light, waterproof, dustproof and shock resistant, and the laser has a strong ability to penetrate dust;
7) The data format is rich, and the point cloud can be exported to any format required by users;
8) The instrument is light, and the overall weight is only 3 kg;
9) Built in high-precision angle compensator, no leveling is required during installation;
10) Provide software development packages to support user programming calls |
| Technical parameter |
Scan parameters |
Horizontal scanning range |
0-360° |
Vertical scanning range |
0-360° |
Scanning accuracy |
2cm |
Vertical angle accuracy |
0.09° |
Horizontal angle accuracy |
0.0005 |
Sampling speed |
20000 points/second |
| Non cooperative target range |
Volumetric error |
＜0.5% |
Range |
60m |
| Laser type |
Ranging laser wavelength |
905 |
Ranging laser type |
Class 1 Eye Safe Laser |
| Data storage |
| Data format |
ASC |
| Communication connector |
| Communication connector |
Self locking cylindrical connector |
| Physical indicators |
| Operating Weight |
3.5kg |
| Volume |
145×145×308mm |
| Working temperature |
-40℃-+60℃ |
| Storage temperature |
-40℃-+80℃ |
| Waterproof grade |
IP67 |
|
|
|
| Measurement method |
This scanner uses high-frequency high-precision scanning sensors in the industry, which can scan 20000 points per second in a 360 degree horizontal full field of view with high accuracy. The horizontal angle accuracy reaches 0.09 °, the measuring range reaches 60 meters, and the point location accuracy is less than 2 centimeters; Light weight, the weight of the whole machine with PTZ is less than 4 kg, and it only takes 2-4 minutes to scan once; |
|
| This product is suitable for hanging installation on the top of coal shed or silo. Users can use computer software to remotely control the scanner through data cable, and obtain the three-dimensional coordinates of the whole yard material pile surface with one key control; This product is suitable for single or multiple ceiling installation and combined suspension measurement.
|
|
|

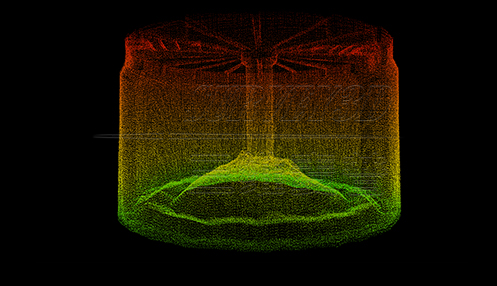

| The color rendering is as follows：
|
|
|
|
|
|
|
|
|
|
| The black and white rendering is as follows：
|
|
| |
|
| |
| One click report is as follows： |
|
| Application area |
In the field of power plants, steel plants and coal mines, there is often a demand for coiled materials in silos, material pits or sheds. Due to the large volume and irregular shape, it is difficult to measure. This 3D laser scanner is a good solution to this problem.
The scanner has a measuring range of up to 60 meters. It is driven by a horizontal 360 degree rotary motor. Due to the friction braking technology and high-precision angle encoder, the equipment can rotate and scan manually and automatically. The scanning speed is fast. It only takes a few minutes to scan once. Due to the good real-time performance of the coal handling system, the automation management level of the power plant can be greatly improved, saving manpower and creating benefits.
This product can not only realize the coal yard scanning of a single instrument, but also can network multiple laser scanners through LAN or wireless network, and automatically set the scanning frequency through the control center software without manual intervention. After scanning, the computer synthesizes and processes the data obtained by the three-dimensional laser scanner, uses the digital fitting technology to establish the digital model of the coal yard surface, calculates the coal pile volume according to the volume integral principle, and draws the three-dimensional graphics of the coal yard according to the digital model. The calculated volume number multiplied by the specific gravity of coal is the coal storage in the coal yard。 |
|
| Three dimensional laser scanning for mining |
|
| Calculation and change analysis of reactor volume in power plant |
|

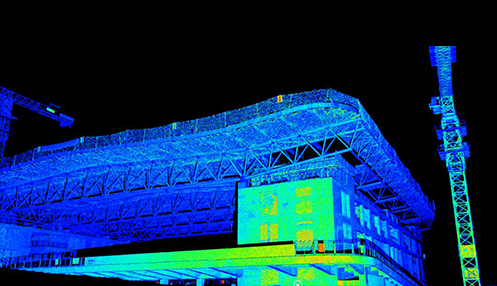

| Building 3D scanning and earthwork survey |
|
| Digitization and 3D modeling of coal yard |
| |
| |
| |
|
|
